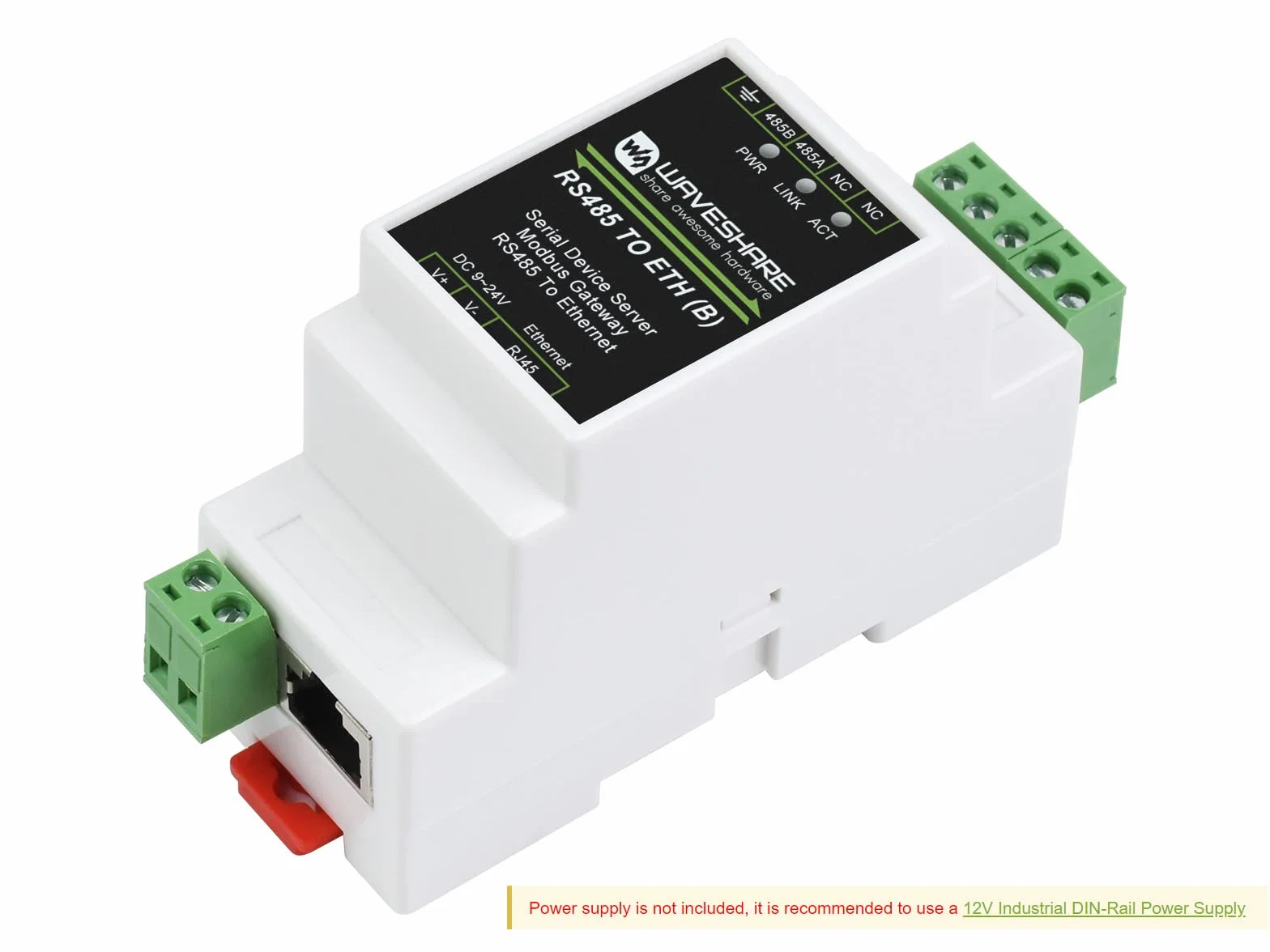

Waveshare Industrial Serial Server RS485 to RJ45 Ethernet TCP/IP Modbus Gateway Rail-Mount

Marque: Waveshare
Interface matérielle: Ethernet
Couleur: RS485 TO ETH (B)
Appareils compatibles: [Inféré] Équipement d'automatisation industrielle, systèmes d'acquisition de données et autres appareils avec interface RS485 ou Ethernet et prise en charge du protocole ModbusVoir plus
Nombre d’emballages: 1
Compatibilité maison intelligente: Non compatible maison connectée
Nombre d'unités: 1.0 unité
Fabricant: Waveshare

- This is a RS485 device data acquisitor / IoT gateway designed for industrial environment

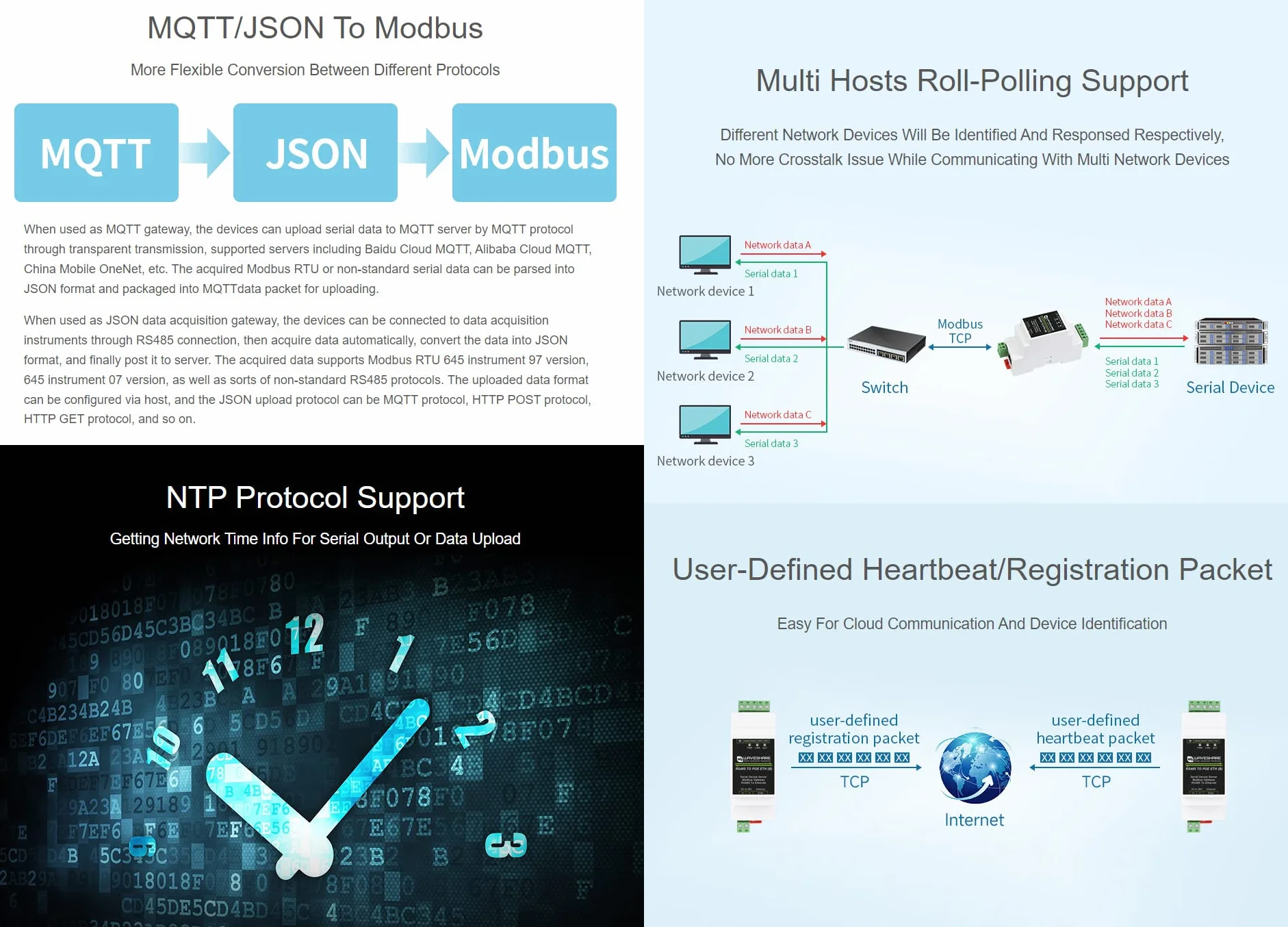

- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc
- The module features RS485 and Ethernet ports, uses screw terminals for power input, supports 9~24V wide range power supply(Note: Power supply is not included, it is recommended to use a 12V Industrial DIN-Rail Power Supply)
- Rail-mount flame-retardant case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring

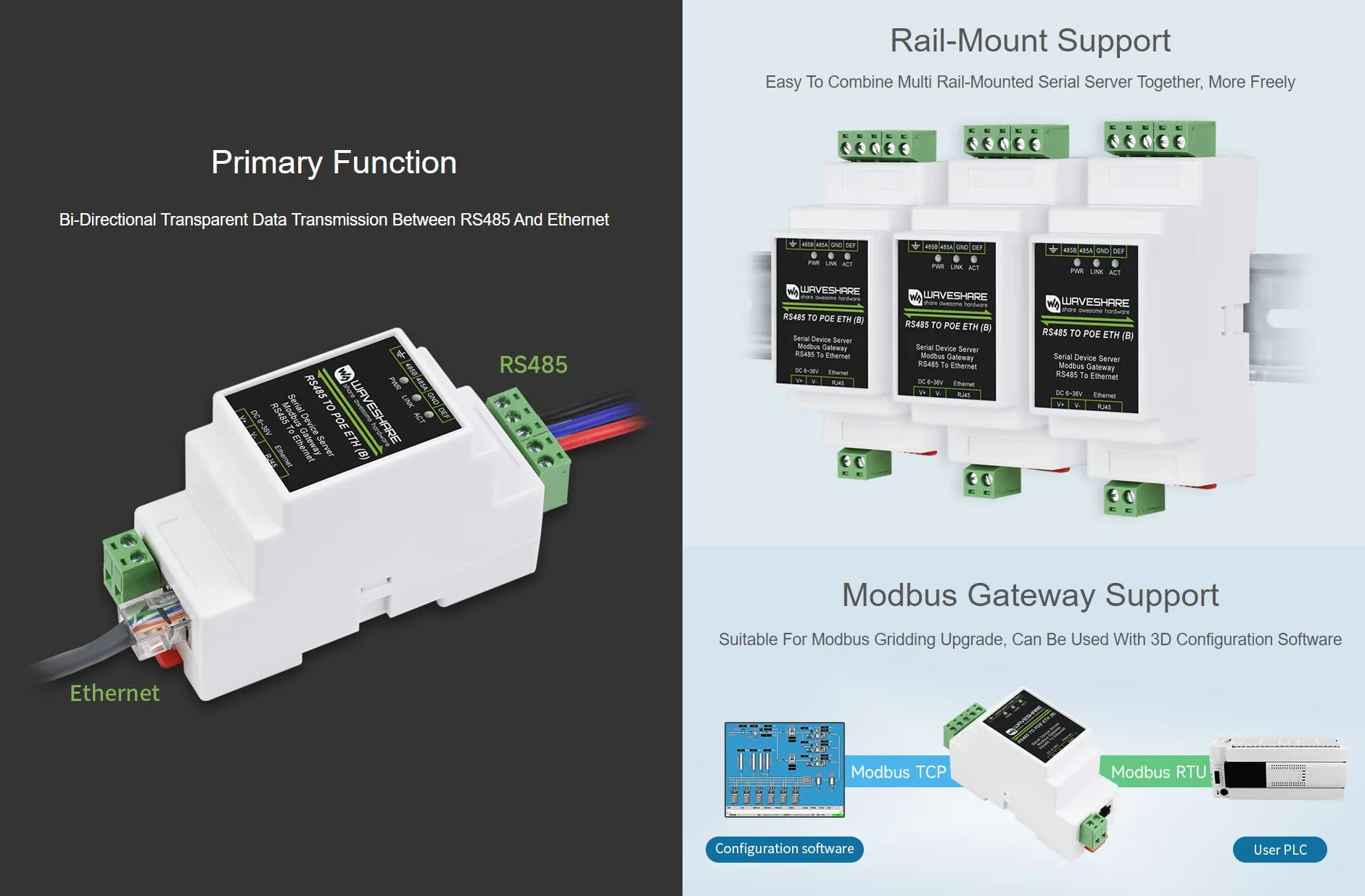

- Bi-Directional Transparent Data Transmission Between RS485 And Ethernet
