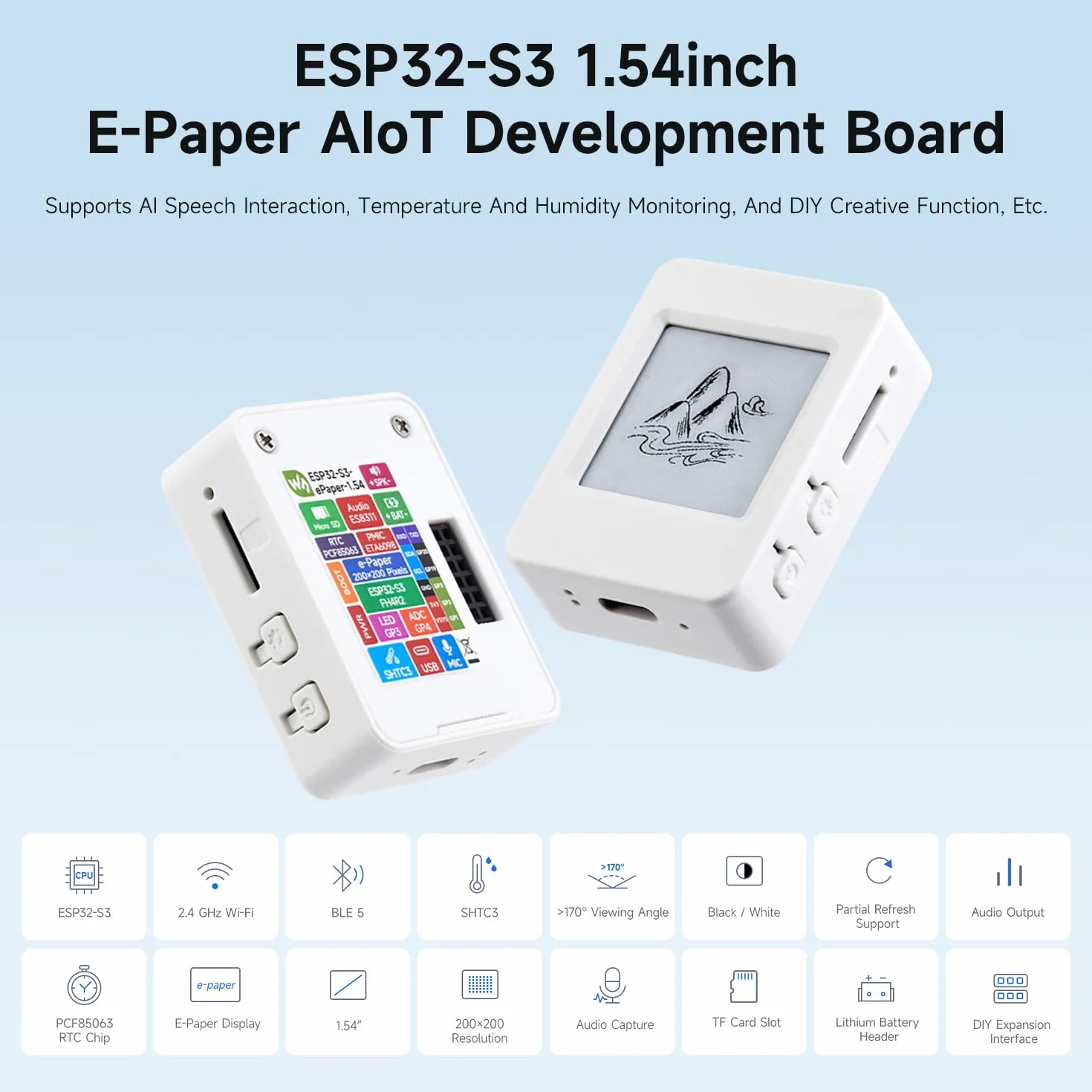

Waveshare ESP32-S3 1.54inch E-Paper AIoT Development Board 200x200 Black/White Wi-Fi BLE

Marque: Waveshare
Nom de modèle: ESP32-S3
Vitesse du CPU: 240 MHz
Technologie de connectivité: Wi-Fi 4, Bluetooth 5.0
Fabricant de CPU: Espressif
Appareils compatibles: Ordinateur personnel, Caméra, Smartphone
Nombre de processeurs: 2
Nombre d’emballages: 1
Nombre d'articles: 1

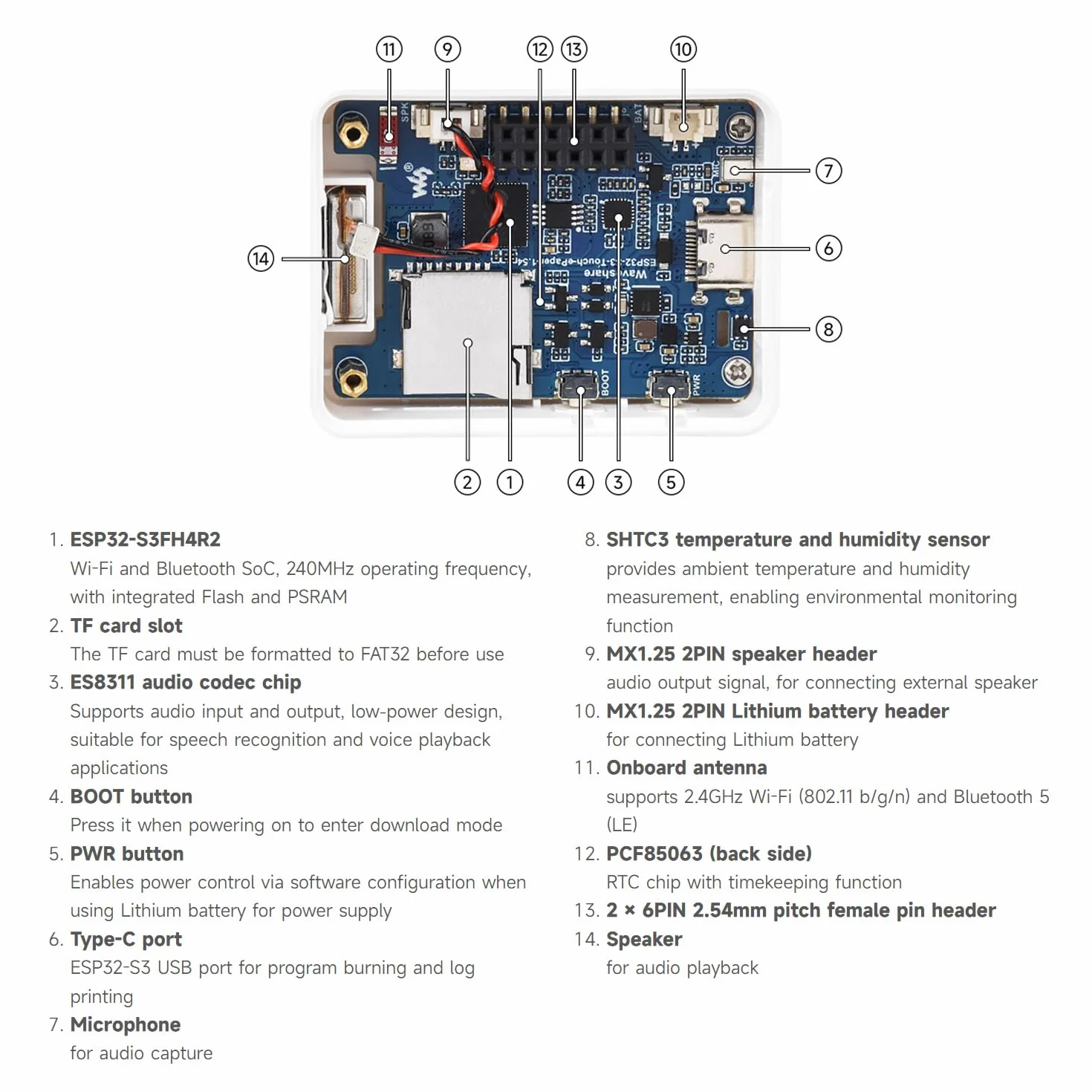

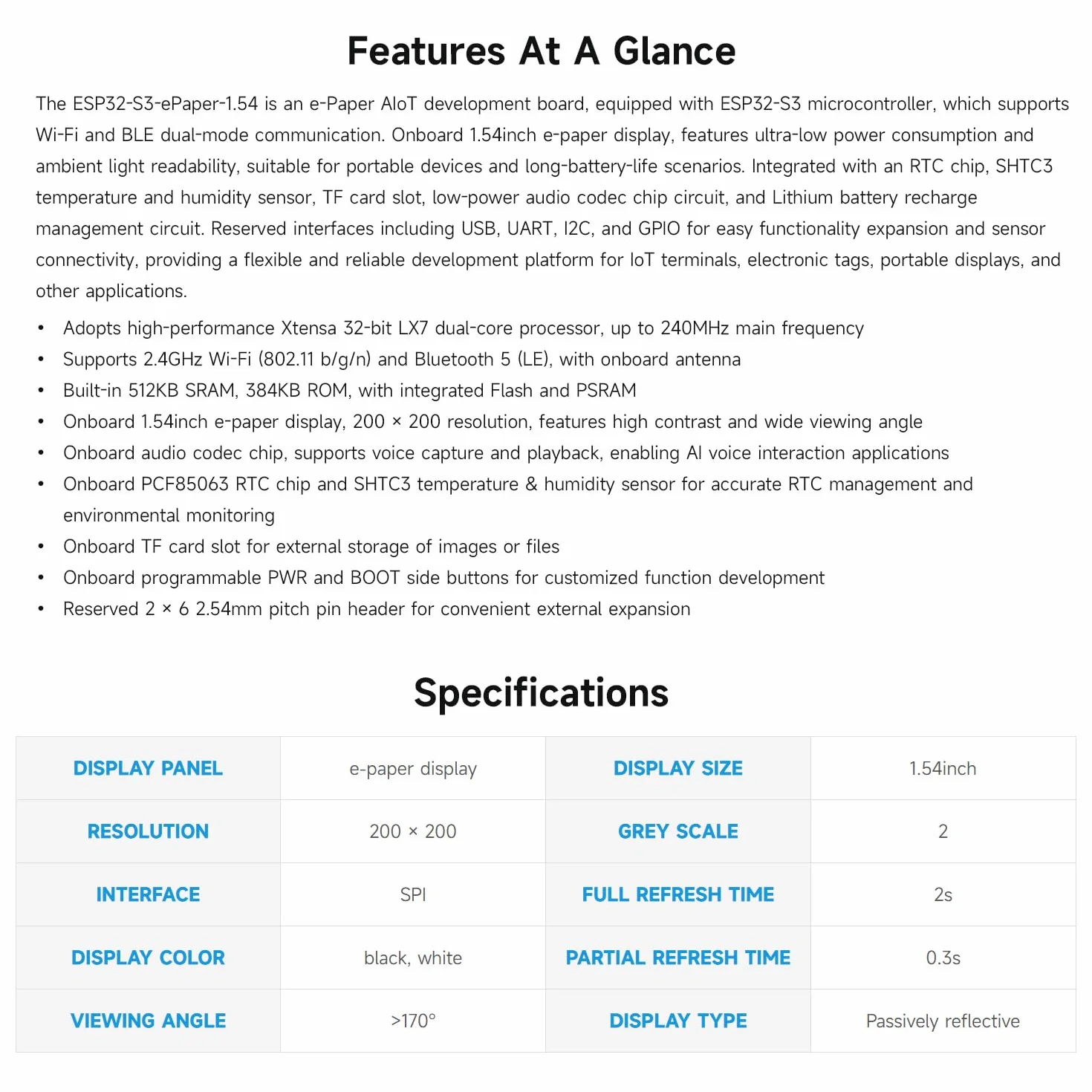

- ESP32-S3-ePaper-1.54-EN, without MX1.25 3.7V Li batt. Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna
- Built-in 512KB Static RAM, 384KB ROM, with integrated Flash and PStatic RAM. Onboard 1.54inch e-paper display, 200x200 resolution, features high contrast and wide viewing angle
- Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications. Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
- Onboard TF card slot for external storage of images or files. Onboard programmable PWR and BOOT side buttons for customized function development
- Reserved 2x6 2.54mm pitch pin header for convenient external expansion
