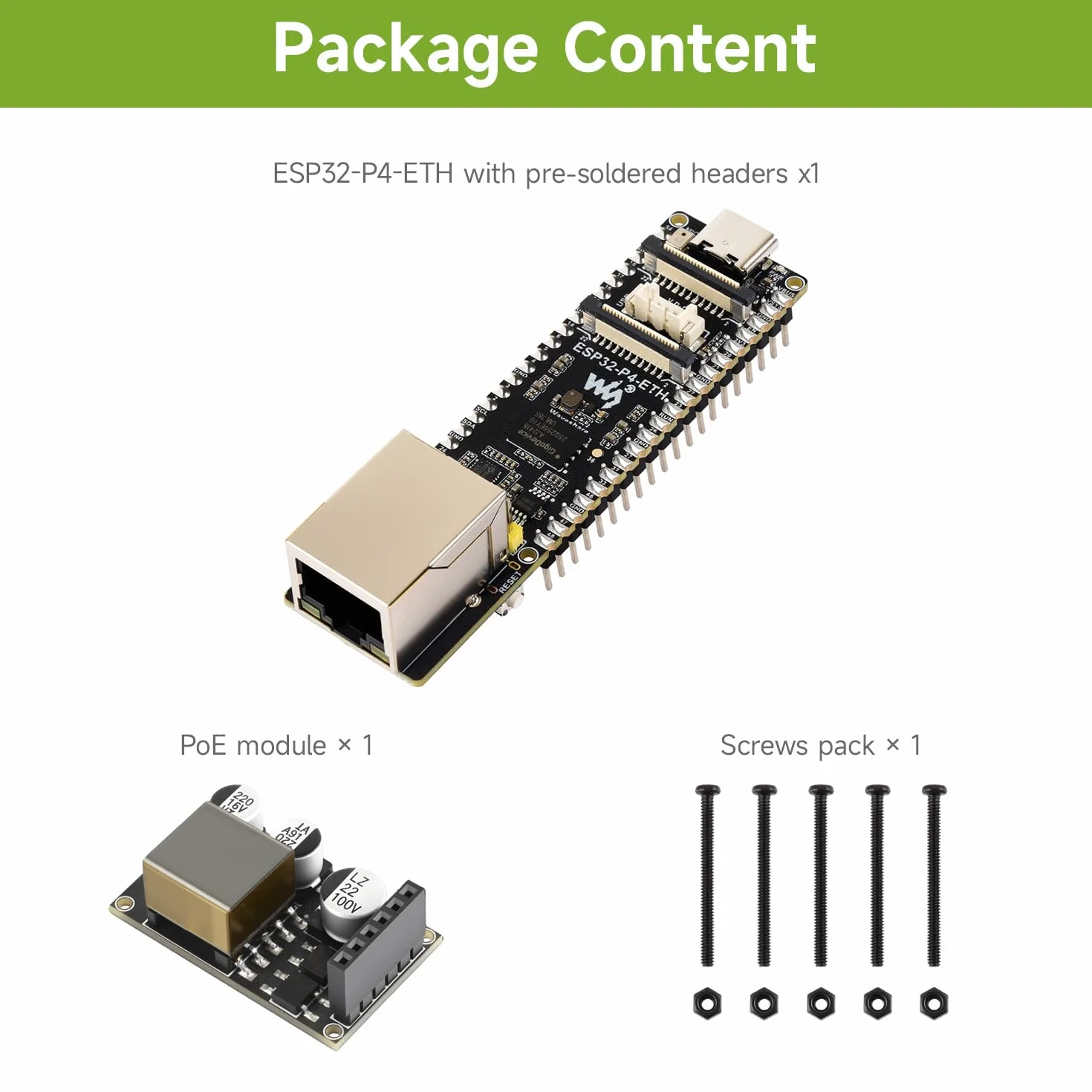

Waveshare ESP32-P4-ETH Development Board, ESP32-P4, 100 Mbps RJ45 Ethernet, PoE Module, 3 Items

Marque: Waveshare
Appareils compatibles: Ordinateur personnel, serveur
Technologie de mémoire RAM: LPDDR
Processeurs compatibles: Processeurs double cœur et monocœur RISC-V 32 bits
Type de chipset: RISC-V
Nom de modèle: ESP32-P4-ETH
Type de connecteur d'alimentation principal: 24 broche
Emplacements de mémoire disponibles: 1
Nombre de ports: 1
Nombre total de ports Ethernet: 1

- High-performance MCU: Equipped with a RISC-V 32-bit dual-core and single-core processors, offering exceptional processing power for various applications.
- Memory and Storage: Features 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP S-RAM, and 8 KB TCM, providing efficient data handling and storage.
- Image and Voice Processing: Supports advanced image and voice processing with interfaces such as JPEG codecs, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder for enhanced multimedia performance.
- Integrated Peripherals: Includes commonly used interfaces like MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, and speaker header, offering versatile connectivity options.
- Security Features: Built with robust security mechanisms, including Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG, as well as hardware access protection for Access Permission Management and Privilege Separation.
