Waveshare Binocular Camera Module Dual IMX219 8MP for AI Vision Depth Stereo Jetson Nano B01 Raspberry Pi 5 Pi4 CM4

Marque: Waveshare
Appareils compatibles: Ordinateur personnel, Ordinateur portable
Technologie de mémoire RAM: DDR
Processeurs compatibles: NVIDIA Jetson Nano, NVIDIA Jetson Xavier NX, Broadcom BCM2711
Type de chipset: NVIDIA
Nom de modèle: IMX219-83
Modèle du CPU: Processeur Cortex A13 1,2 GHz
Emplacements de mémoire disponibles: 2
Bus système standard pris en charge: PCIe
Nombre total de ports PCI E: 1

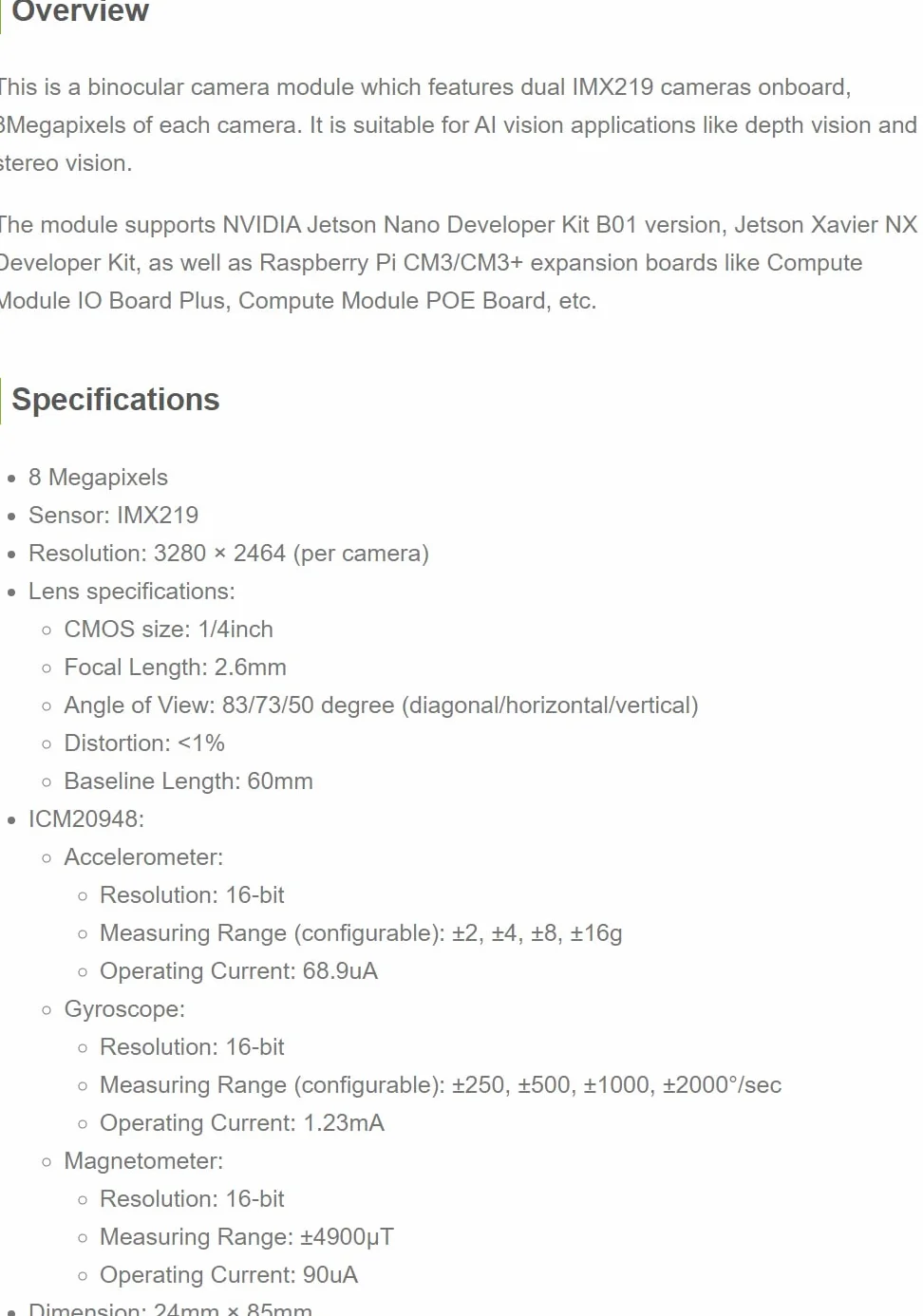

- This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

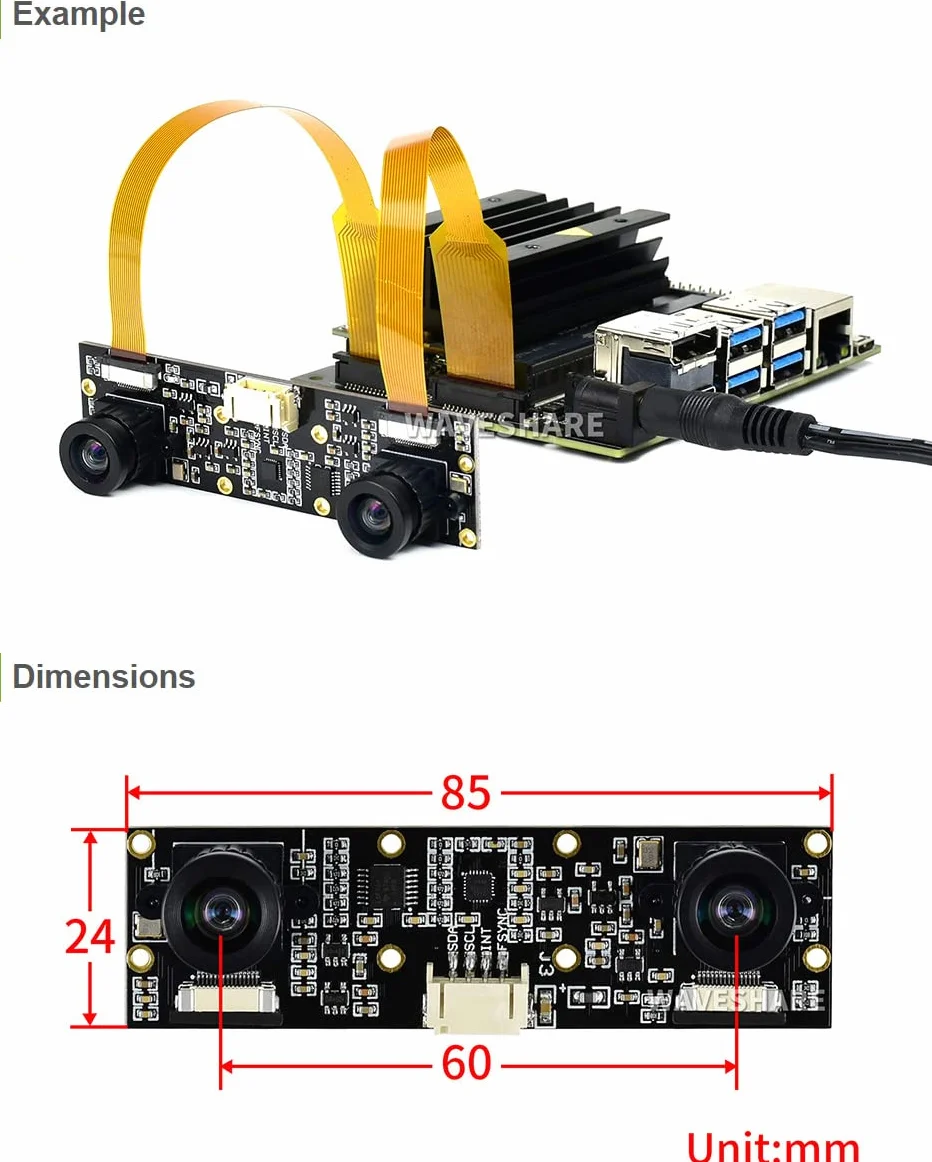

- The module supports Jetson Nano Developer Kit B01 version, Jetson Xavier NX Developer Kit, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.

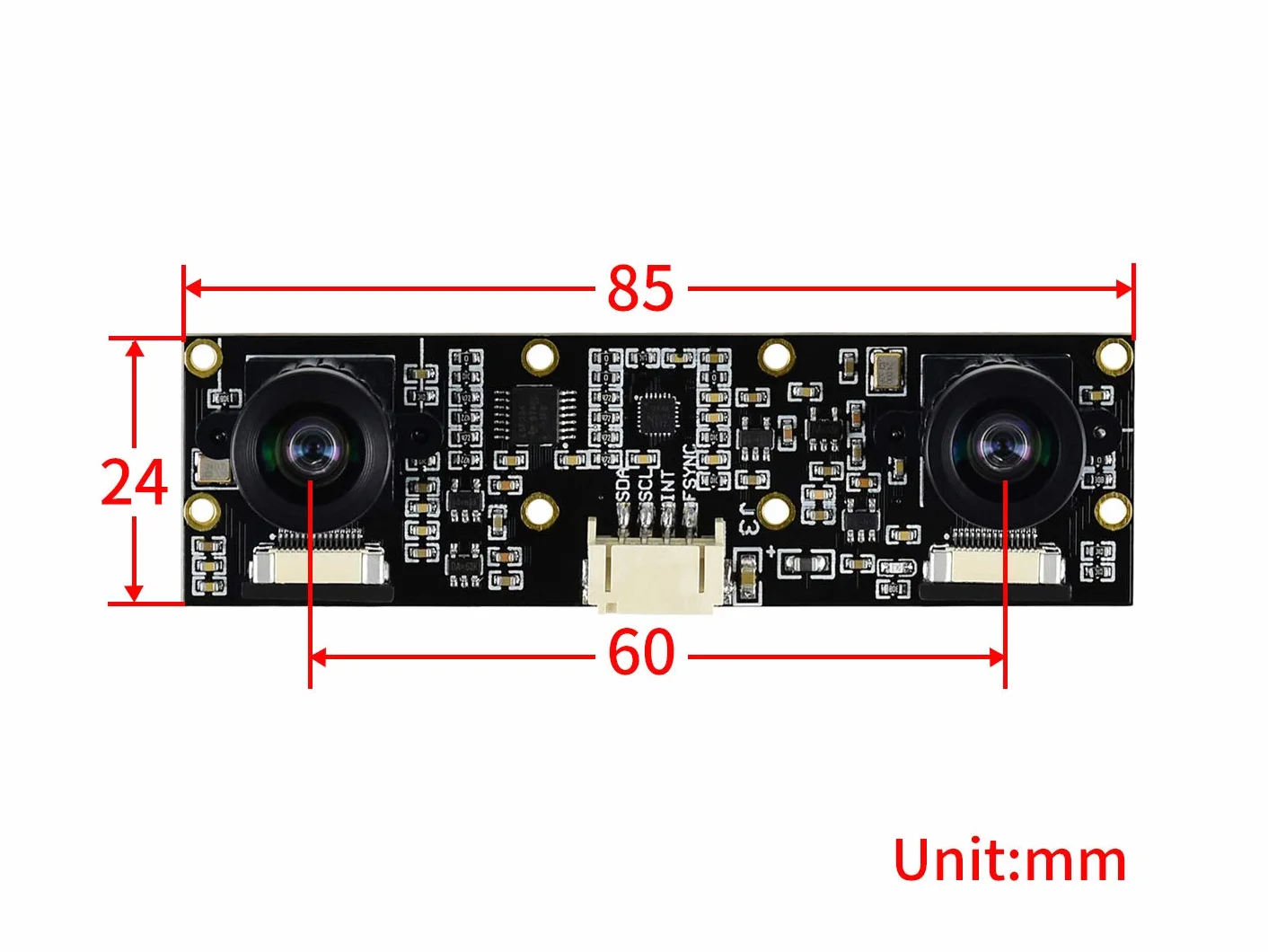

- Resolution: 3280x2464 (per camera). Dimension: 24mmx85mm.
- CMOS size: 1/4inch. Focal Length: 2.6mm. Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: <1%
