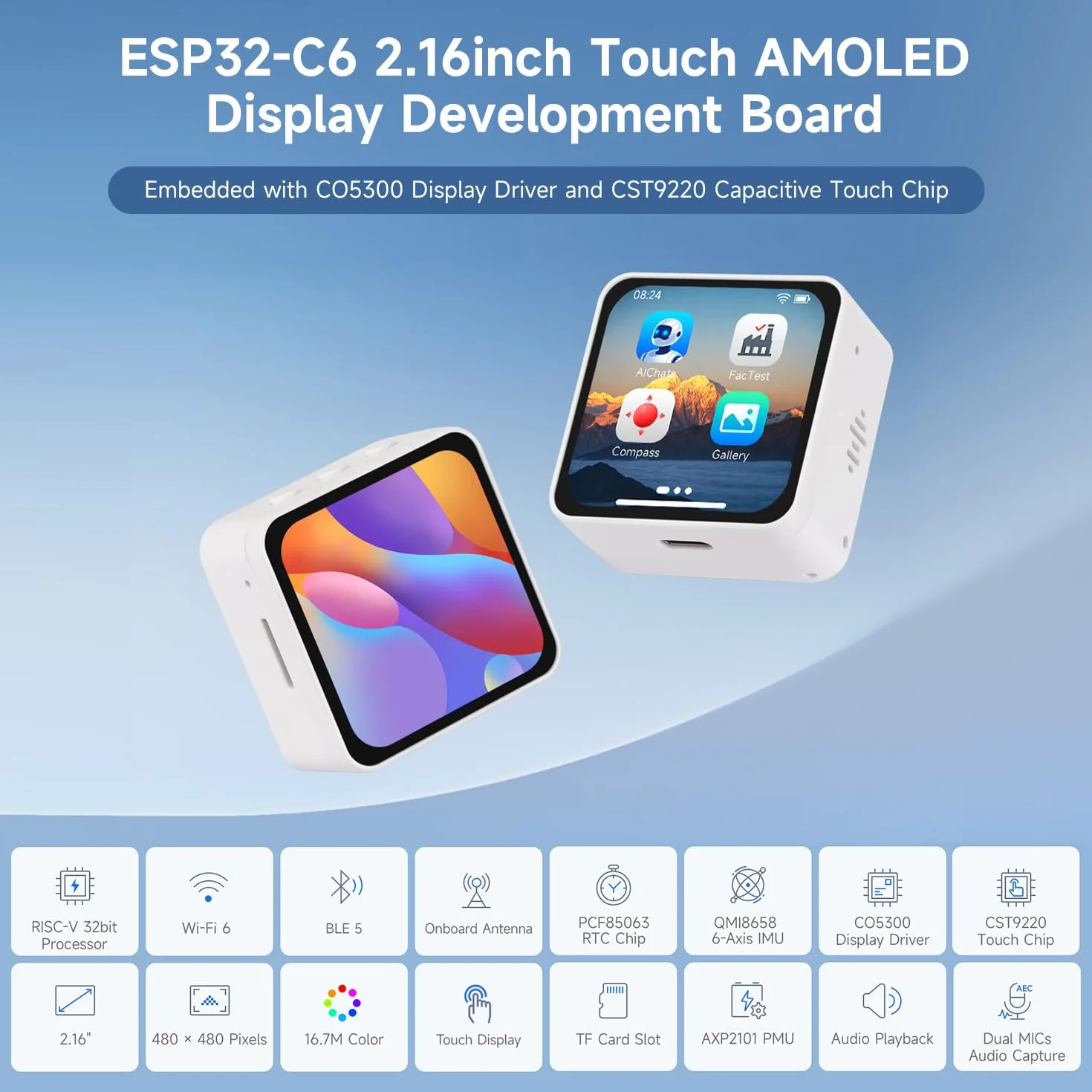

Waveshare ESP32-C6 2.16inch AMOLED Display Touch Screen Development Board, 480 x 480 Resolution, 16.7M Color, Supports Dual Microphones, Wi-Fi 6 And BLE 5, No Batt

Marka: Waveshare
Pojemność pamięci masowej: 16 MB
Liczba procesorów: 1
Całkowita liczba portów USB: 1

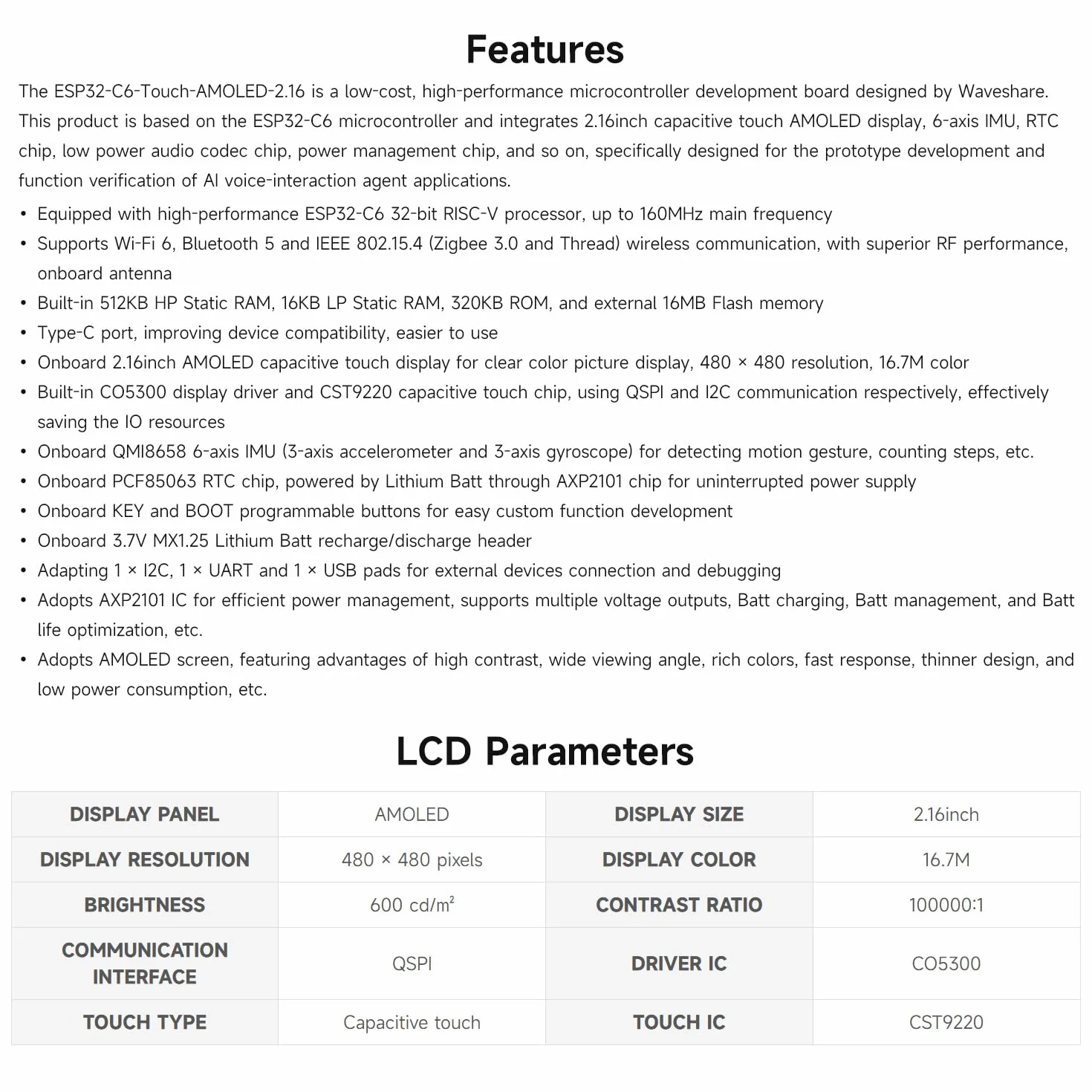

- ESP32-C6-Touch-AMOLED-2.16-EN, Standard version, without Li Batt. Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency. Supports Wi-Fi 6, BT 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna
- Built-in 512KB HP Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory. Type-C port, improving device compatibility, easier to use. Onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 x 480 resolution, 16.7M color

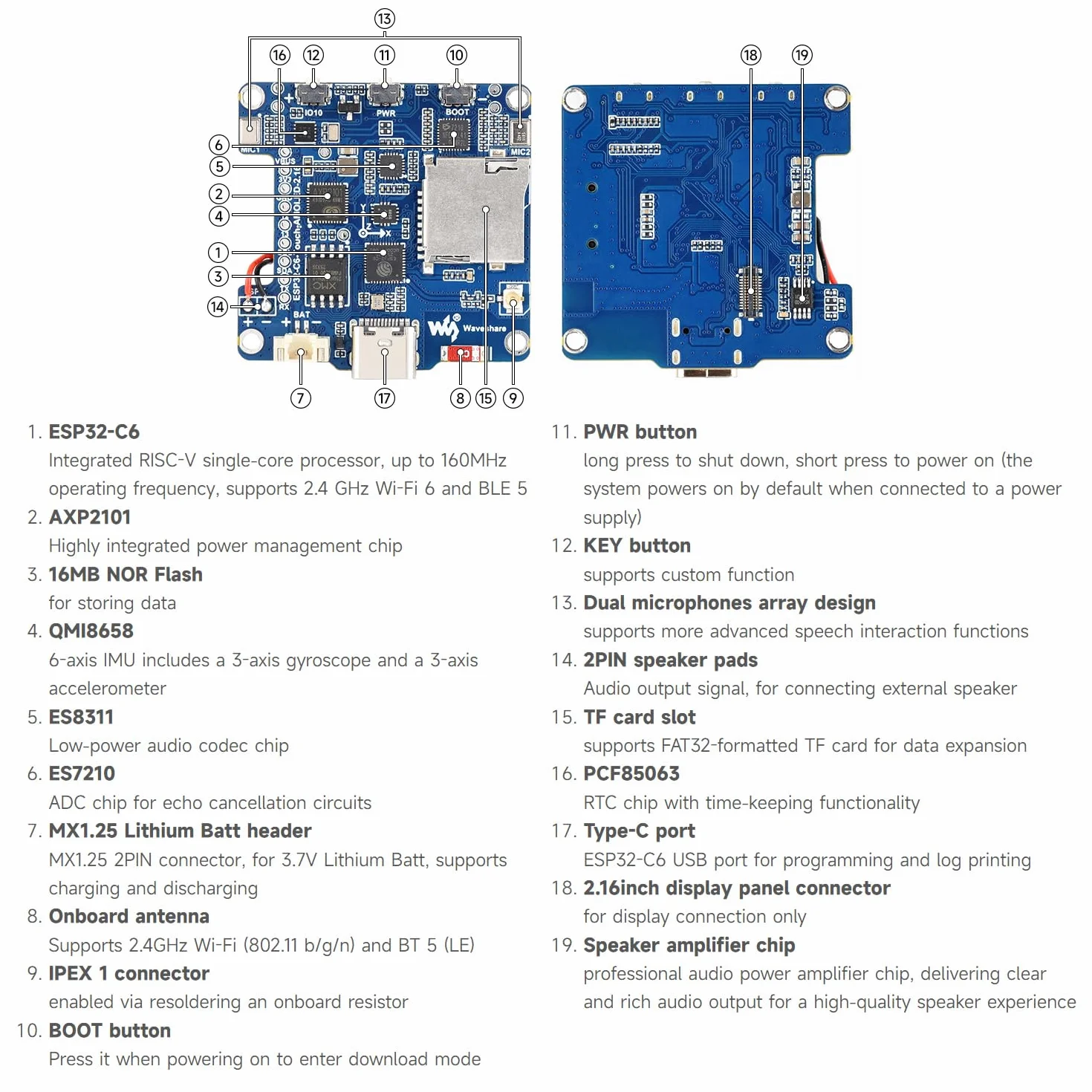

- Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard KEY and BOOT programmable buttons for easy custom function development. Adapting 1 x I2C, 1 x UART and 1 x USB pads for external devices connection and debugging

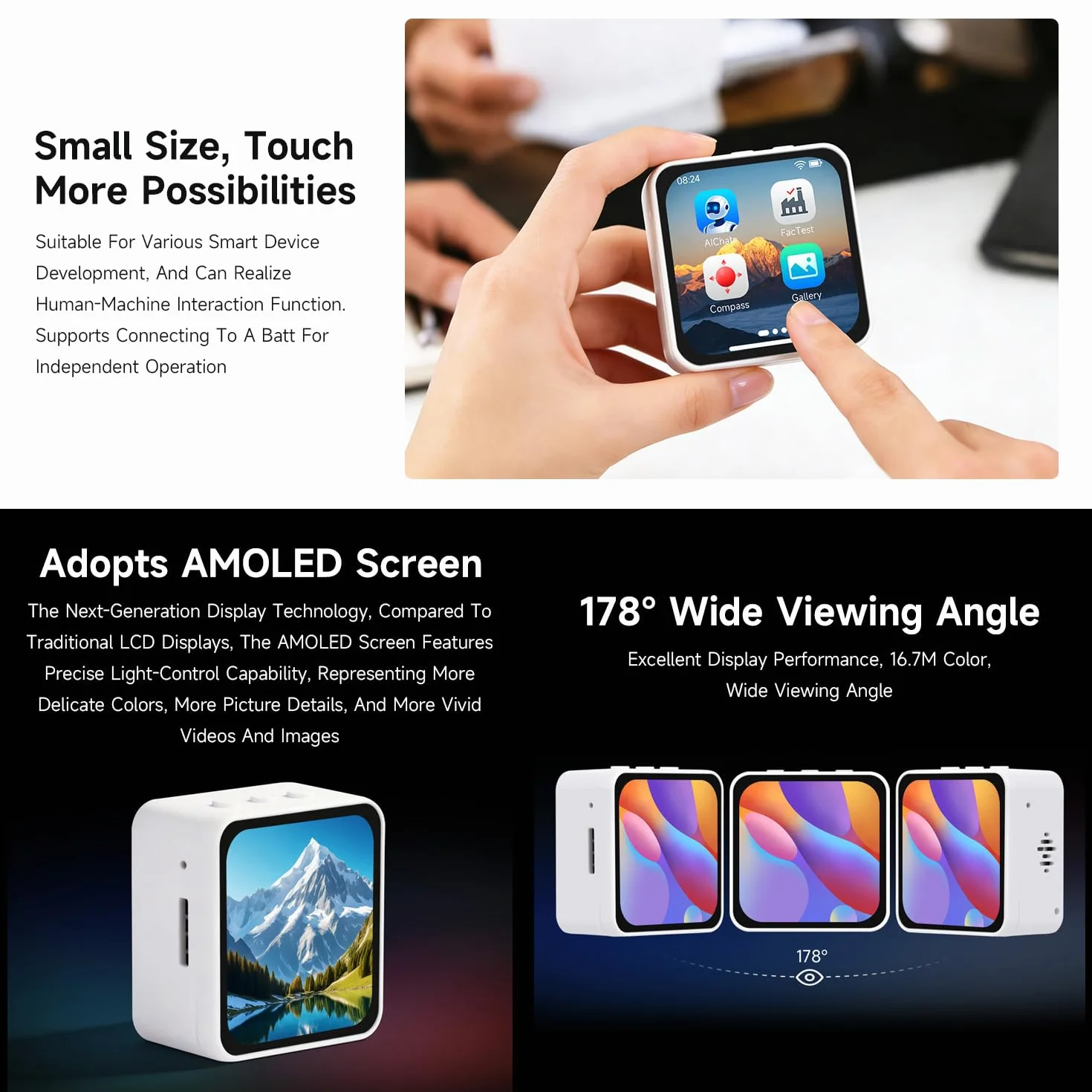

- Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
