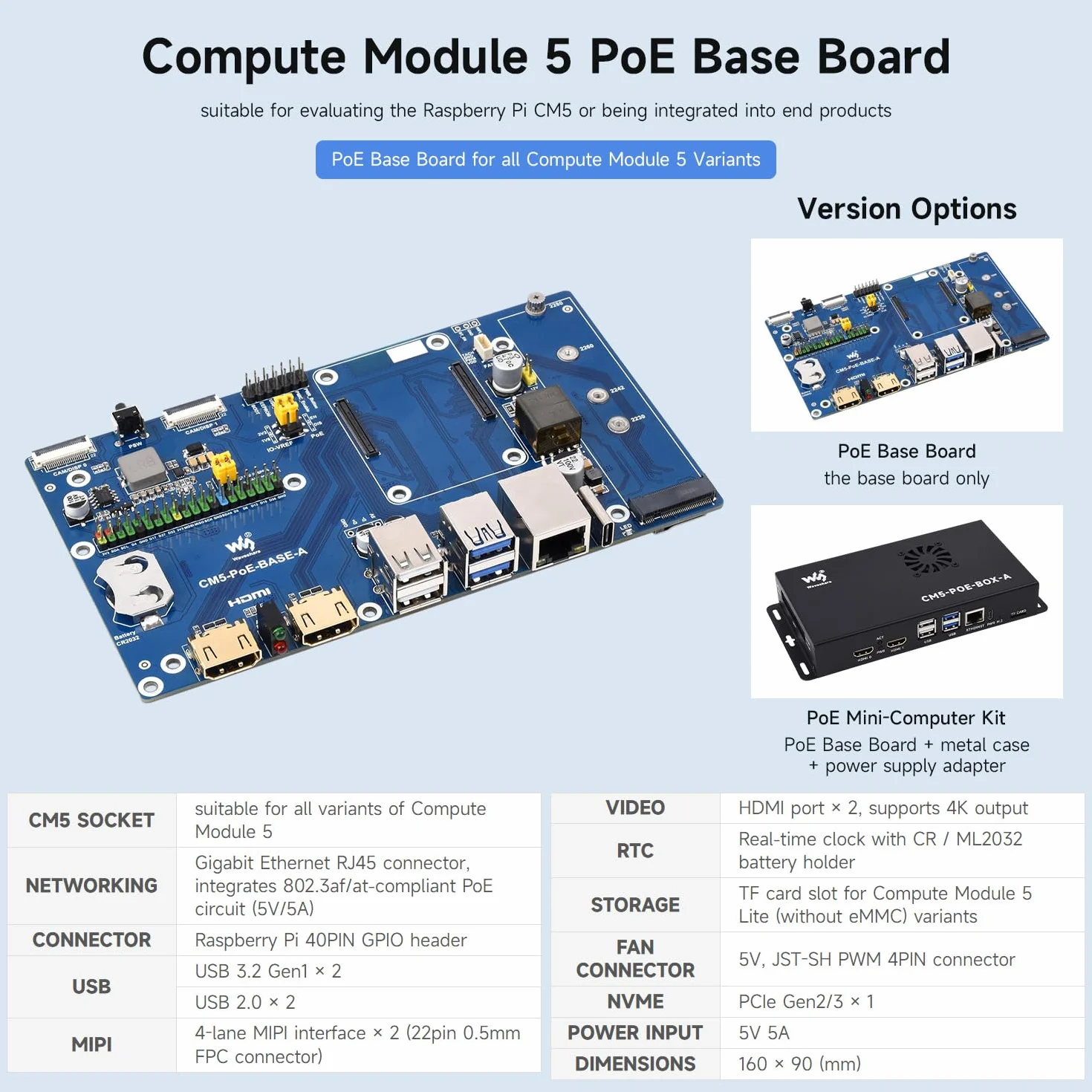

Waveshare Compute Module 5 IO Board, Compatible with All Variants of Raspberry Pi CM5, with PoE Feature, Bundle with PoE Base Board + Case + Power Supply Adapter

Marka: Waveshare
Nazwa modelu: Compute Module 5 IO Board
Model CPU: Cortex A8
Technologia łączności: Ethernet, MIPI, M.2, HDMI, USB, microSD

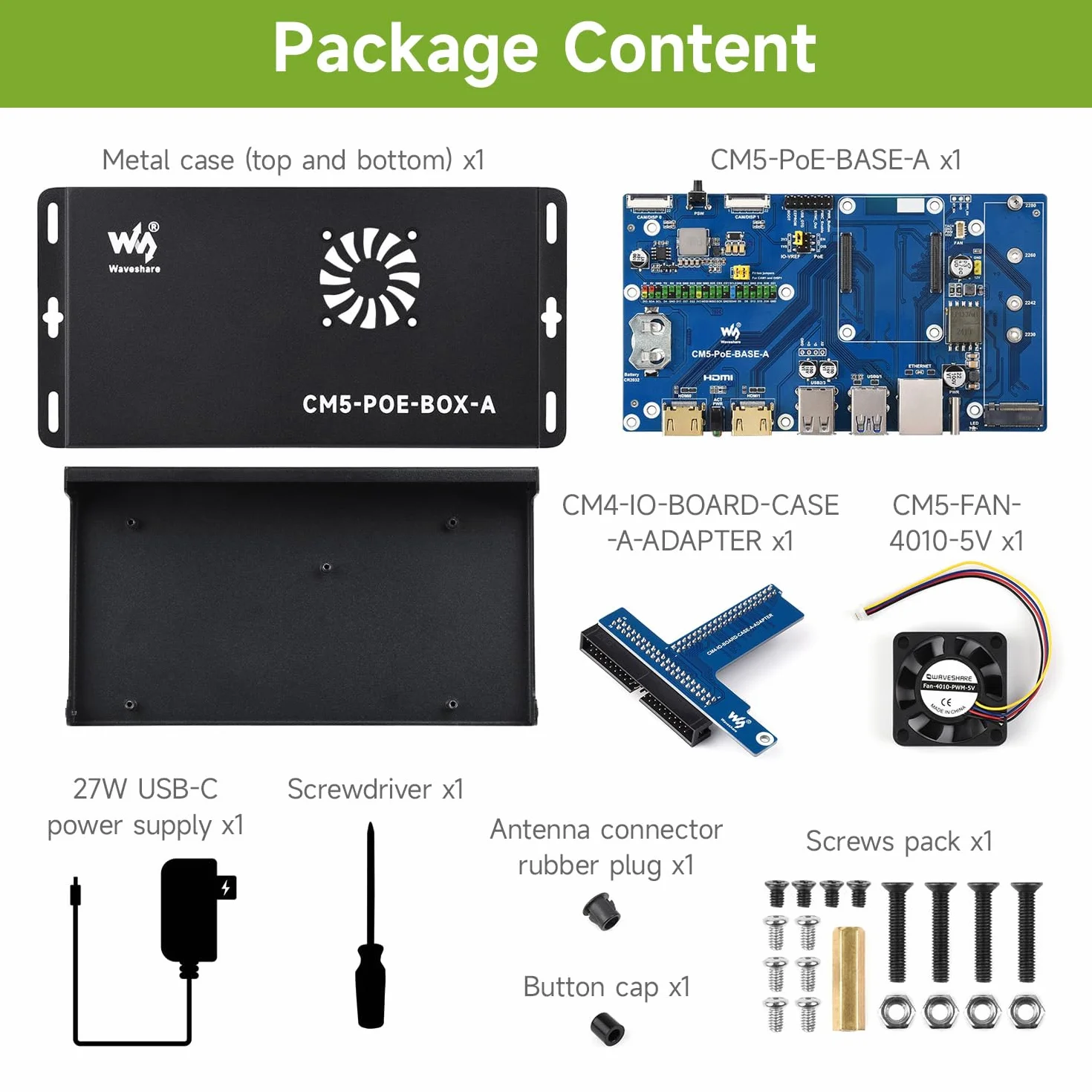

Dołączone komponenty: Płyta bazowa PoE, obudowa, zasilacz
System operacyjny: Linux
Zgodne urządzenia: (function(f) {var _np=(window.P._namespace("DetailPageProductOverviewTemplatesJava"));if(_np.guardFatal){_np.guardFatal(f)(_np);}else{f(_np);}}(function(P) {
P.when('A').execute(function(A){
A.on('a:truncate:po-attribute-truncate-6:updated', function(data) {
var isTruncated = !data.truncateInstance.getIfTextFits();
var seeMoreElement = document.getElementById('po-attribute-see-more-id-6');
if(seeMoreElement) {
seeMoreElement.style.display = isTruncated ? '' : 'none';
}
})
});
}));Urządzenia Raspberry Pi, urządzenia z kompatybilnymi portami (MIPI, M.2, HDMI, USB, ETH, gniazdo kart TF)Pokaż więcej
Technologia pamięci RAM: LPDDR4
Liczba procesorów: 1
Całkowita liczba portów USB: 1

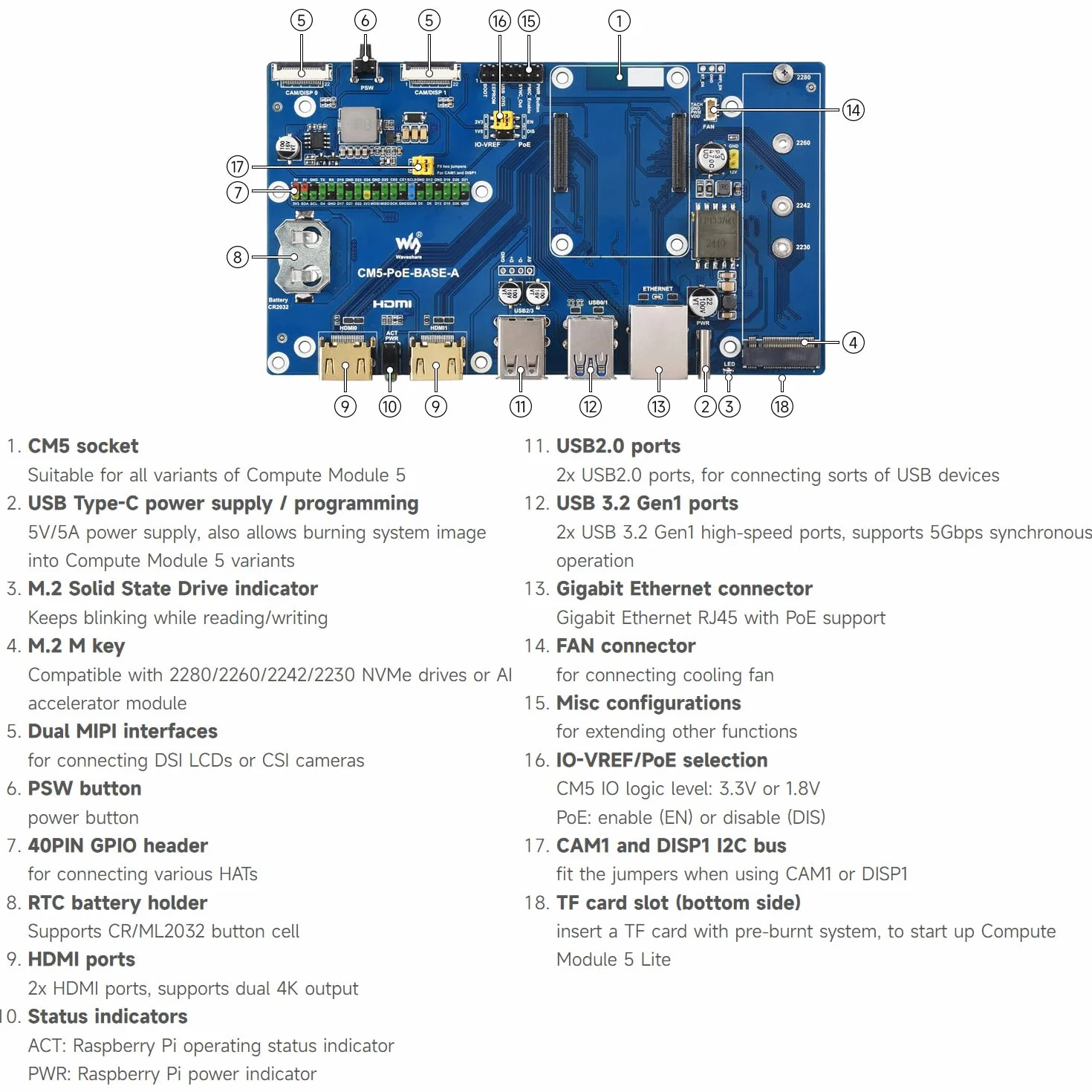

- Standard CM5 socket and Raspberry Pi 40PIN GPIO header suitable for all variants of Compute Module 5

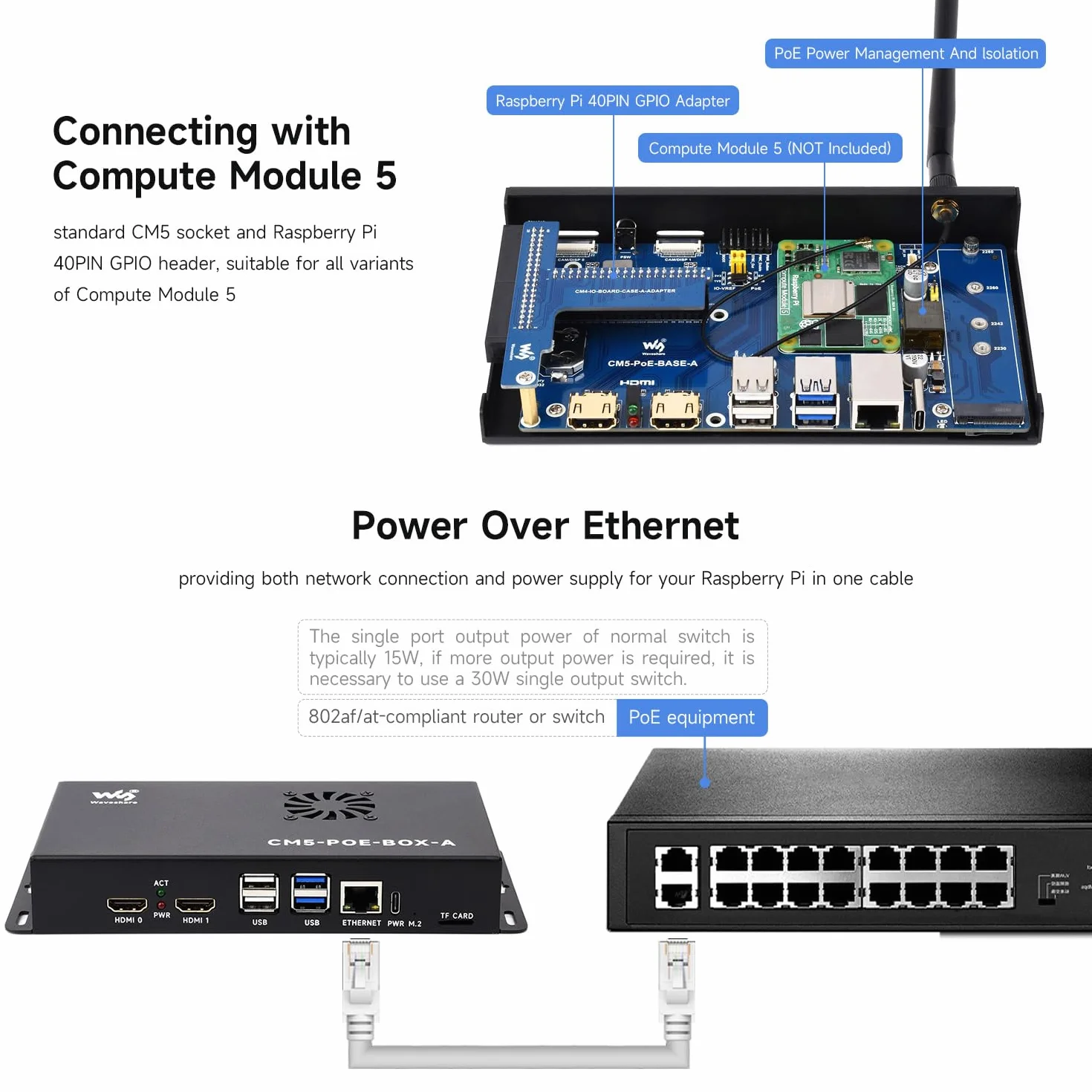

- Providing both network connection and power supply for your Raspberry Pi in one cable

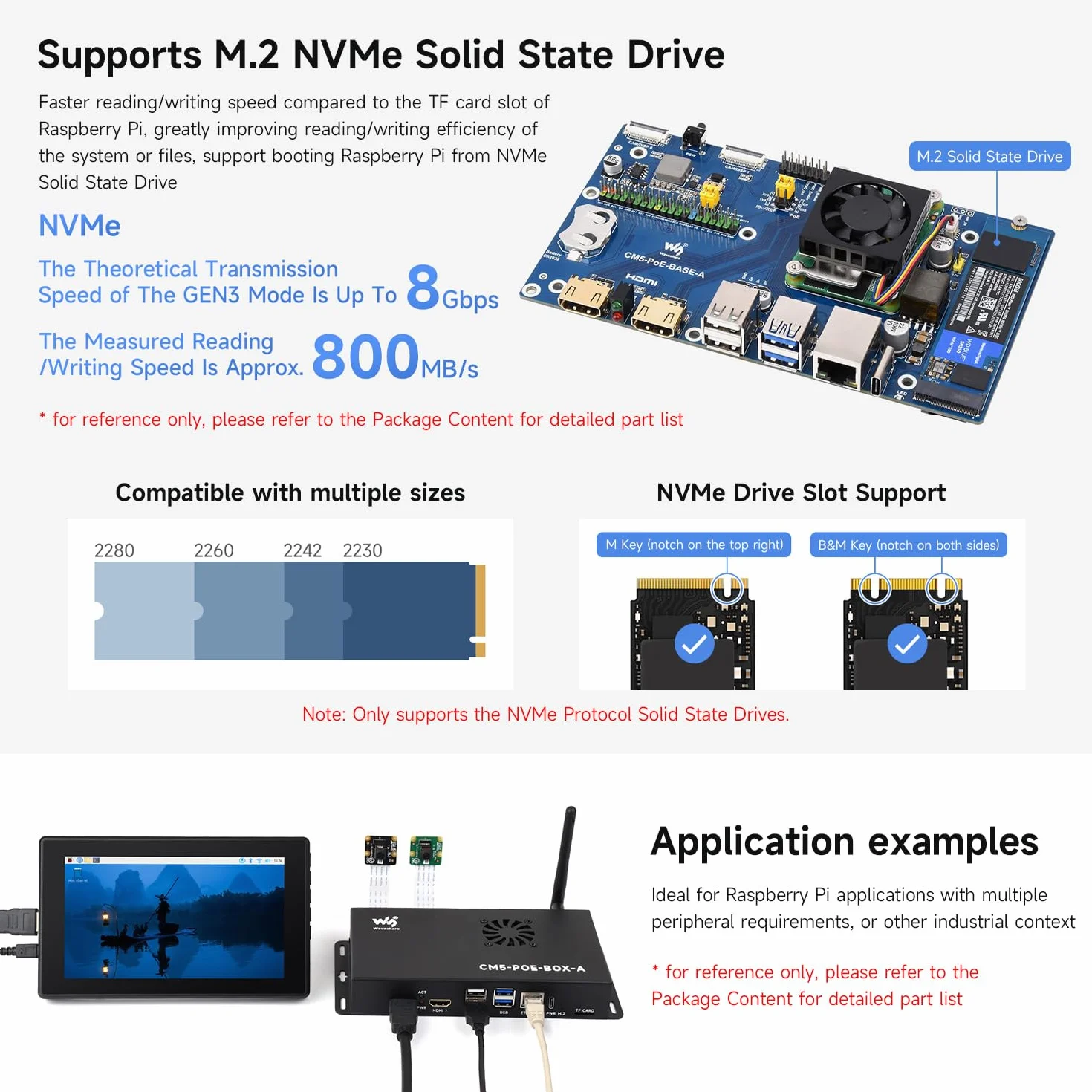

- Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, support booting Raspberry Pi from NVMe Solid State Drive

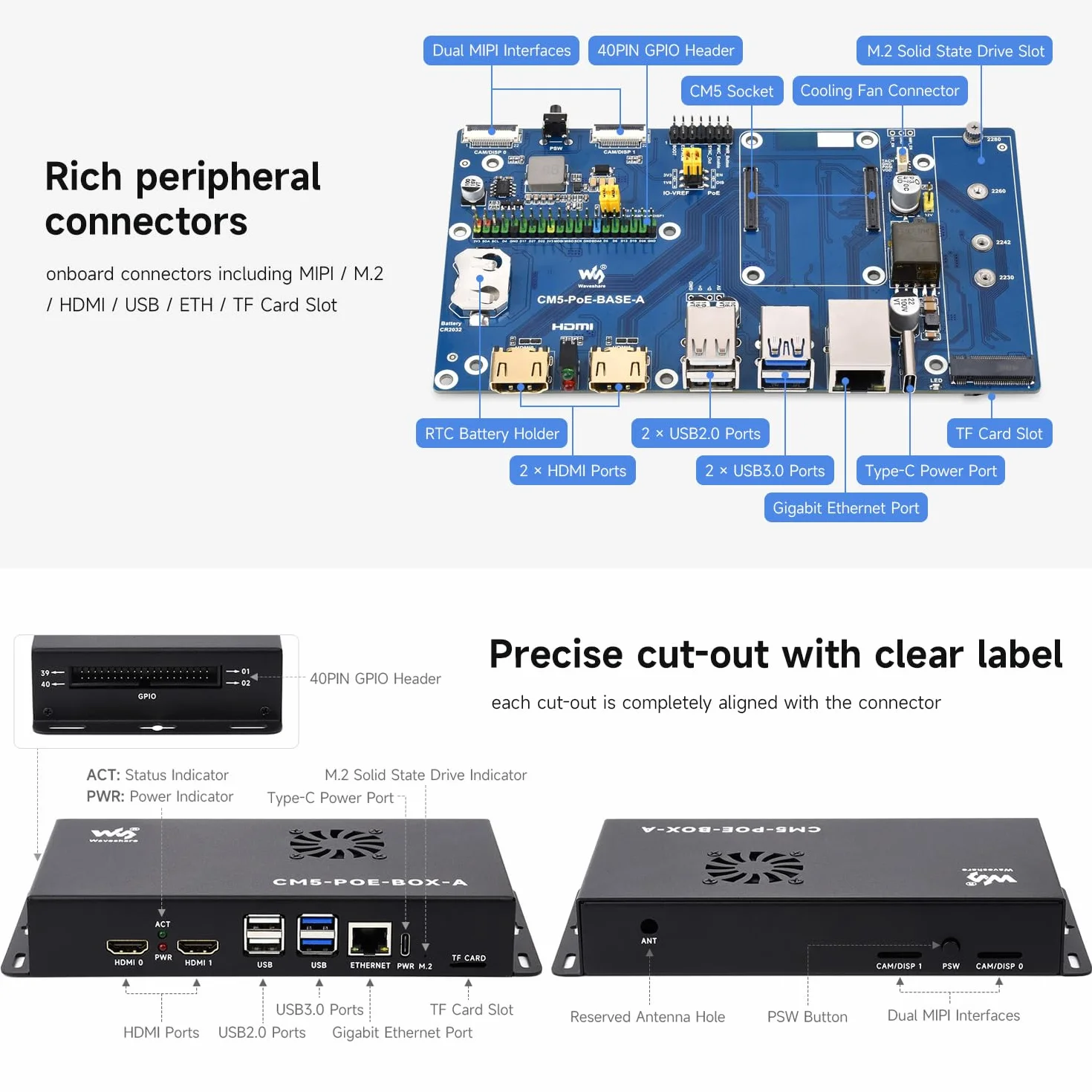

- ONboard Connectors Including MIPI / M.2 / HDMI / USB / ETH / TF Card Slot.each cut-out is completely aligned with the connector
