Waveshare Nano Base Board (B) For Raspberry Pi Compute Module 5, Same Size As The CM5

Marka: Waveshare
Nazwa modelu: Nano Base Board (B)
Model CPU: A10
Technologia łączności: USB 3.2 Gen1, HDMI, Ethernet 1000BASE-T

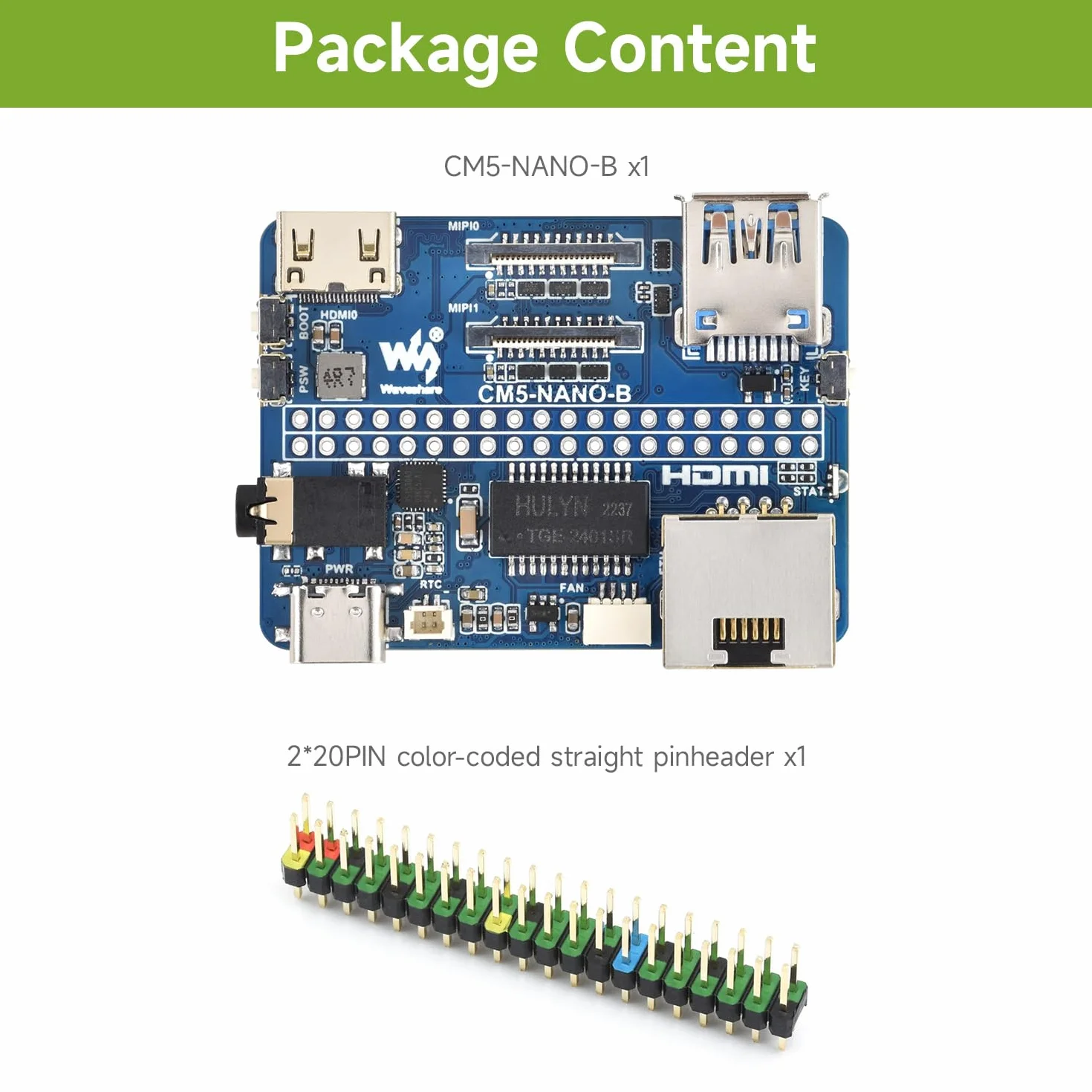

Dołączone komponenty: CM5-NANO-B
System operacyjny: Linux
Producent procesora: ARM
Zgodne urządzenia: Komputer osobisty, monitor, klawiatura, głośniki, aparat fotograficzny
Technologia pamięci RAM: LPDDR4

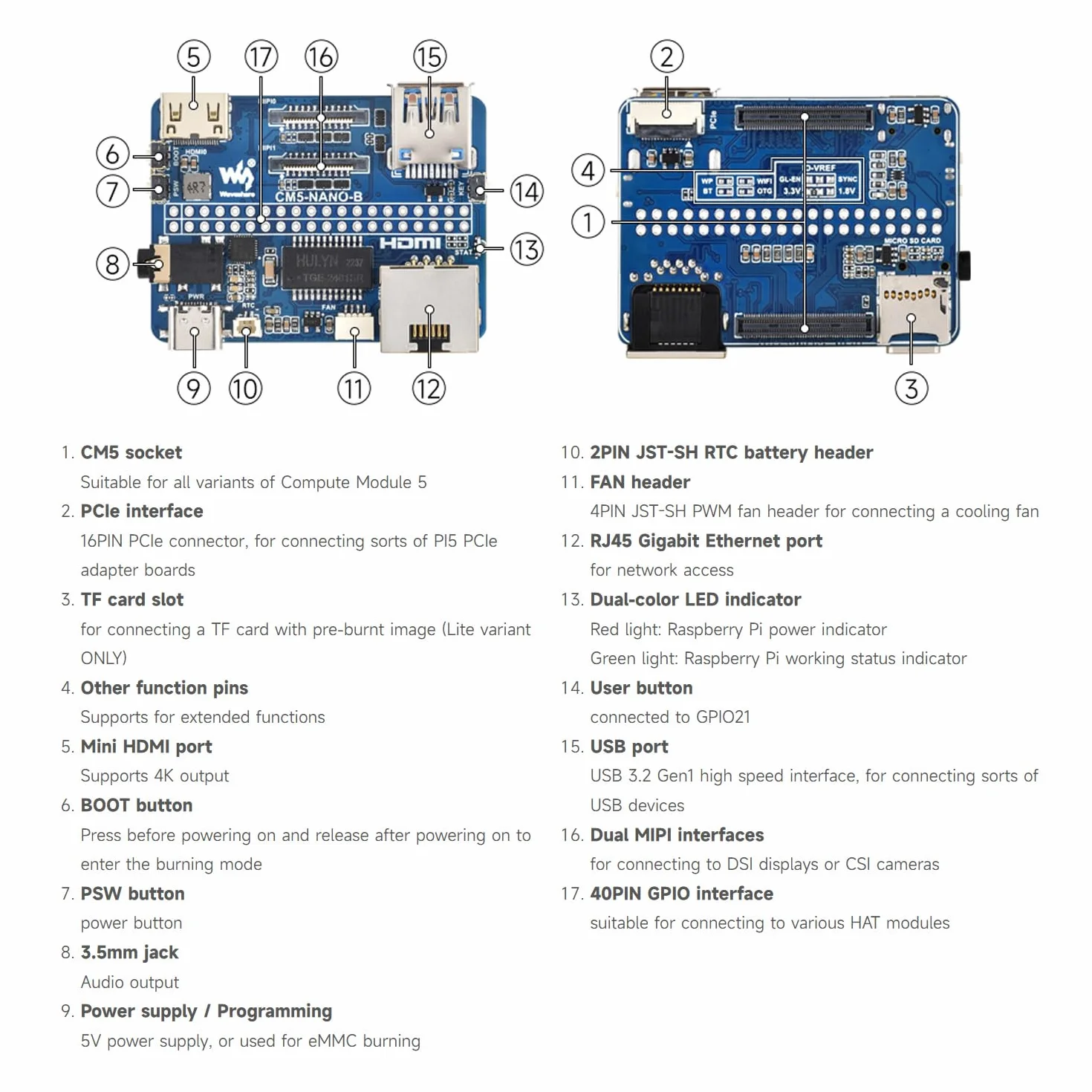

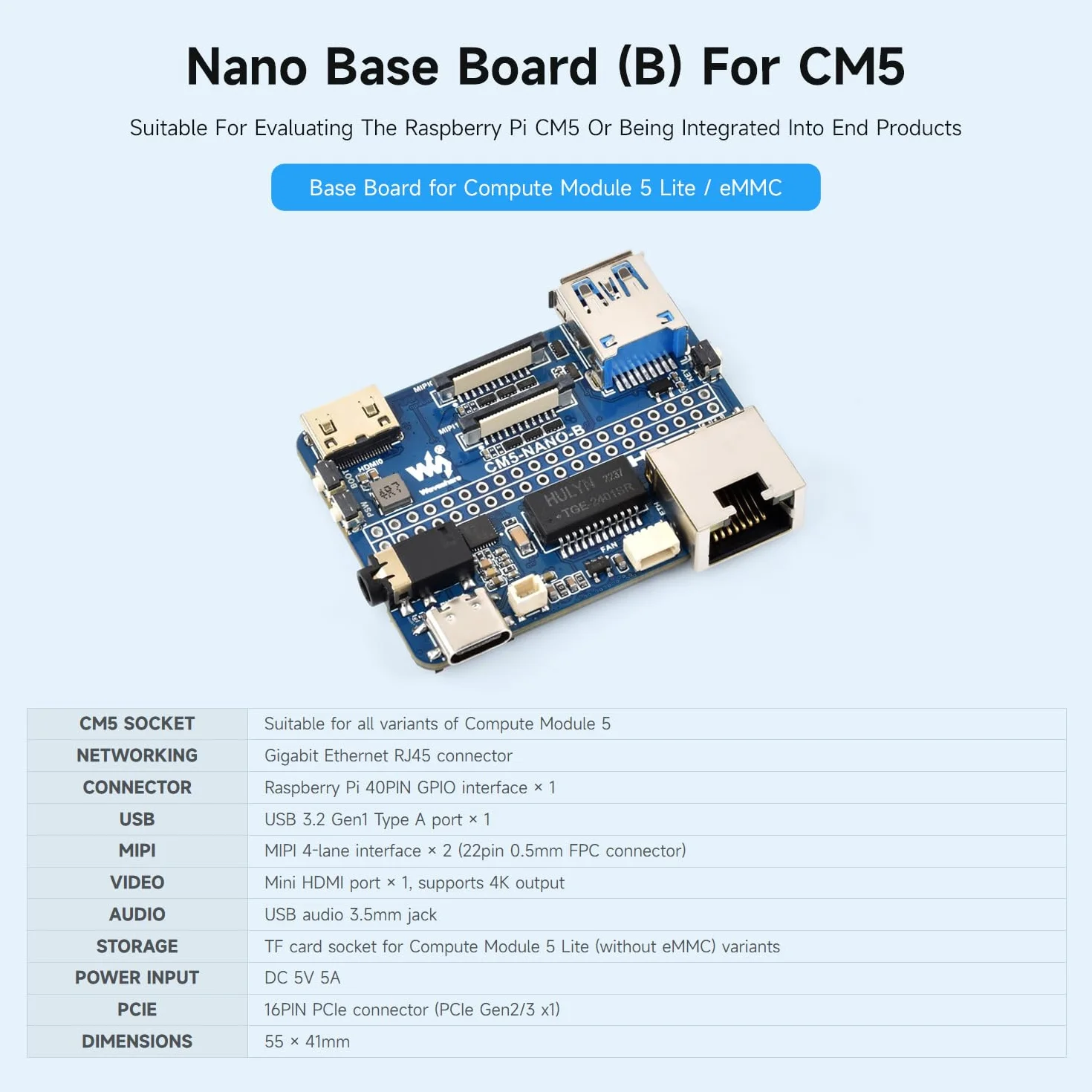

- As the mini IO board of the Raspberry Pi Compute Module 5, CM5-NANO-A is a baseboard that can be used with the Raspberry Pi Compute Module 5. With powerful features integrated into a compact design, it is only the size of a CM5 and has interfaces including USB 3.2 Gen1, HDMI, audio, Ethernet port, etc.
- Onboard default USB 3.2 Gen1 port.Type C can be used as a USB SLAVE interface to flash images.
- The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode
- Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized
- USB TYPE A interface maximum power output 2A. It is forbidden to unplug and unplug any device other than USB when it is charged
